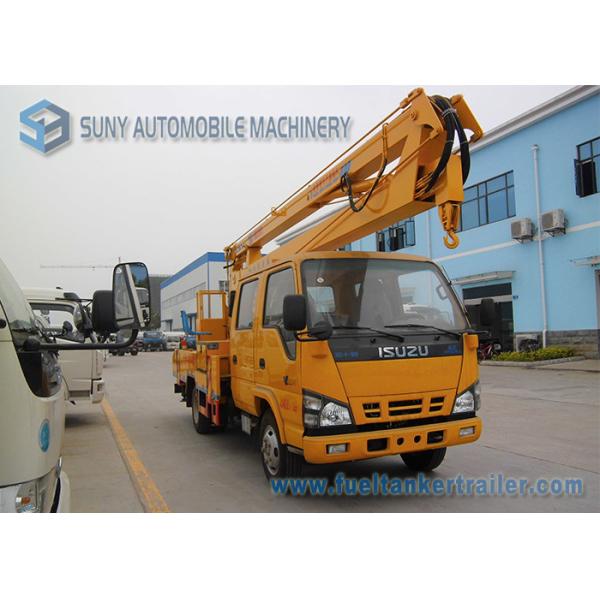

ISUZU 600P 130hp High Altitude Operation Truck , 16M Aerial Platform Truck

Hubei Suny Automobile And Machinery Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

ISUZU 600P 130hp High Altitude Operation Truck , 16M Aerial Platform Truck

Brand Name : SUNY
Model Number : SY5051JGKQ41
Certification : ISO, CCC, BV, SGS
Place of Origin : Suizhou Hubei China
MOQ : 1 set
Price : USD 27000 - 37000 / Set
Supply Ability : 1000 sets per Year
Delivery Time : 30 days after receiving deposits
Packaging Details : bulk, ro-ro, container
Boom Type : Articulated Booms
Operation Hight : 16M
Max. Working Range : 7M
Truck : ISUZU 600P
Steering Control : Left Hand Drive
Max.Rated.Load : 200KG
Cabin : Double Row Cabin , One And Half Row Cabin , Single Row Cabin
Color : Yellow , White
Contact Now

ISUZU 600P 130hp High Altitude Operation Truck , 16M Aerial Platform Truck



Competitive Advantage :


Electro-hydraulic proportional control, stepless throttle

1 . Limit switch and alarm

2 . Control box at both turret and platform
3 . With a 2-section telescopic boom crane
4 . Emergency descent power
5 . Safety interlock

6 . Large outrigger span, outrigger can be operate individually



Description:


We are a professional supplier of aerial working platform trucks in China , can provide our customers various configuration trucks with different prices .
1 . Emission standard : Euro 4
2 . Truck brand : ISUZU 600P,etc
3 . Cab : double-Row ( rated passengers : 6 ) ,
4 . Steering control : Left Hand Dive
5 . Working height : 10m , 16m ,
6 . Boom type : Articulated Booms and Telescopic Booms
7 . Hydraulic lifting system : 360° rotation ;
8 . Arms ( outriggers ) No. : two , three , four or five arms ;
9. Legs : equip with H-mode hydraulic legs .
10 . The hydraulic operation system : set in the upper and lower end of the truck , equip with working platform & lifting hook .
11 . Platform : mounted at the boom end provide enough space for the working person to work easily .



technical parameters :


Vehicle name

ISUZU 600P 130hp Articulated Booms High Altitude Operation Truck 16M Aerial Working Platform Truck

Chassis

Cab

ISUZU

double row cabin / single row cabin / one and half row cabin , A/C ,

Left hand drive

Engine

ISUZU 130HP

2771 -4087ml

Engine emission standard

Euro 4

Fuel type

Diesel

Tire

6.50-R16 / 7.00-R16

Wheelbase

3815mm

Gear box

5-speed

Boom

Boom type

Articulated Booms

Upper boom lifting angle

70°

Lower boom lifting angle

70°

Turn around angle

360°

Platform

Max.Rated.Load

200kg(2 persons)

Max.Working Height

16M

Max Height off ground

14.3M

Max. working range

7M

Outrigger

Adjustment

Individual adjustment

type

H type

HOOK

Max. loading

1000kg



Details show:
